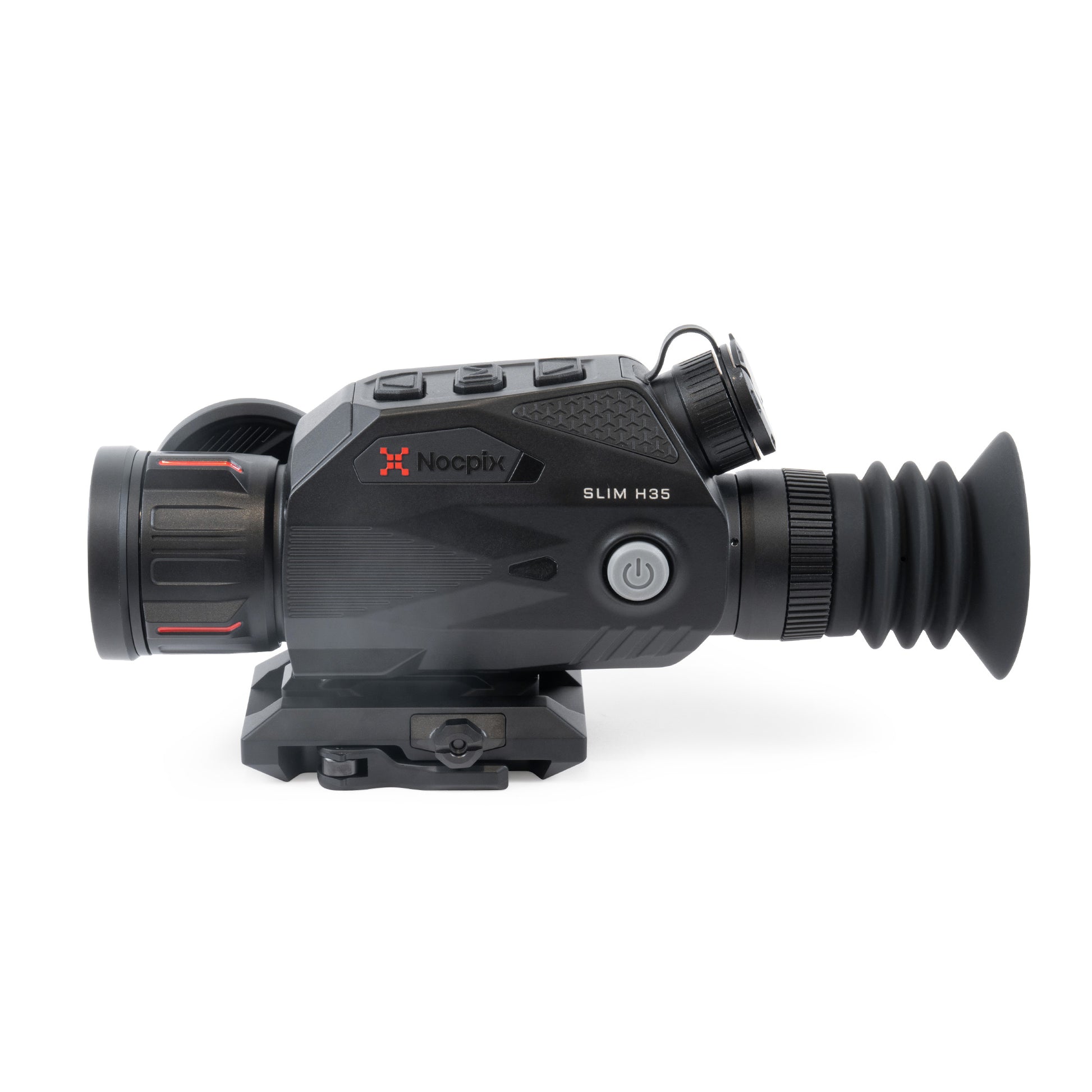

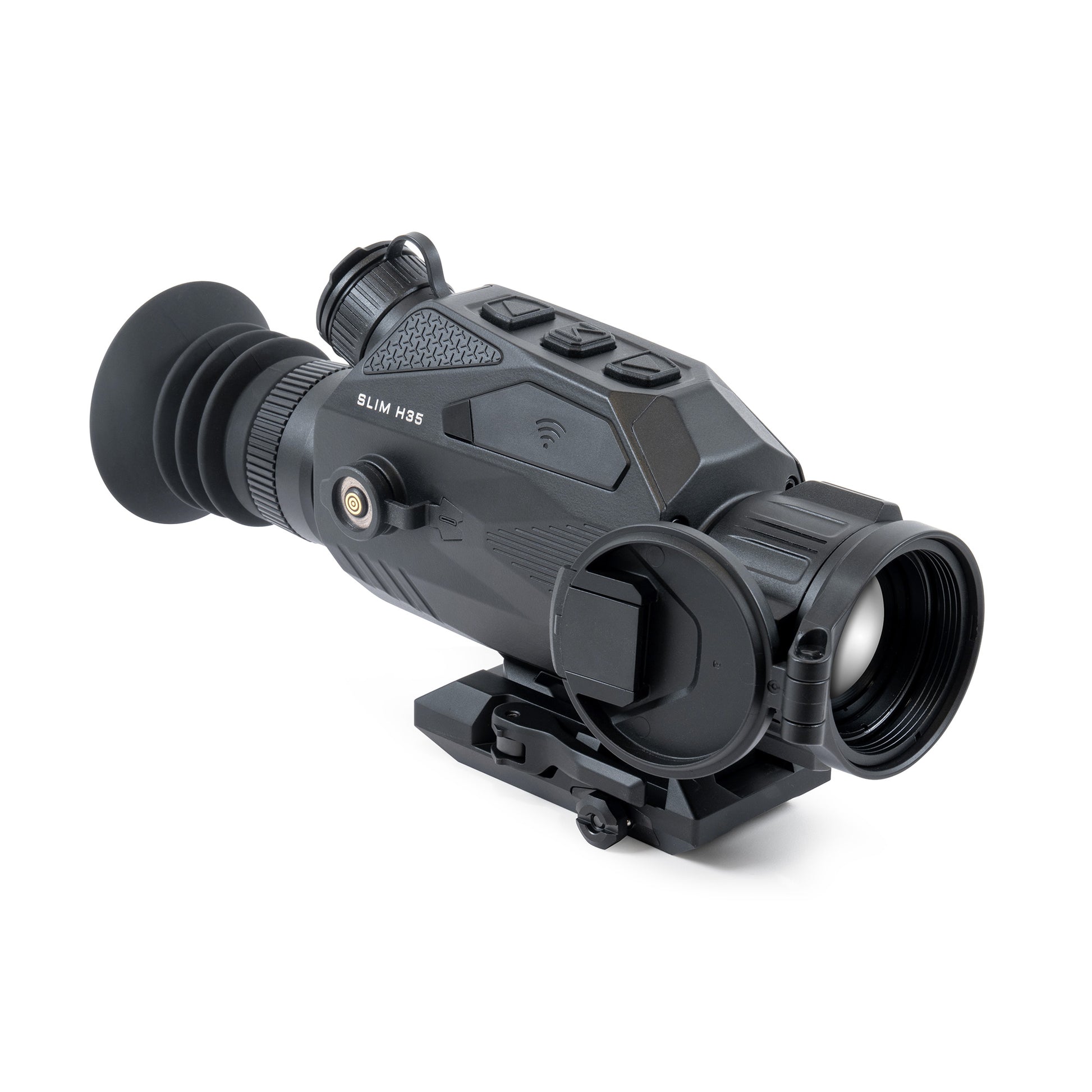

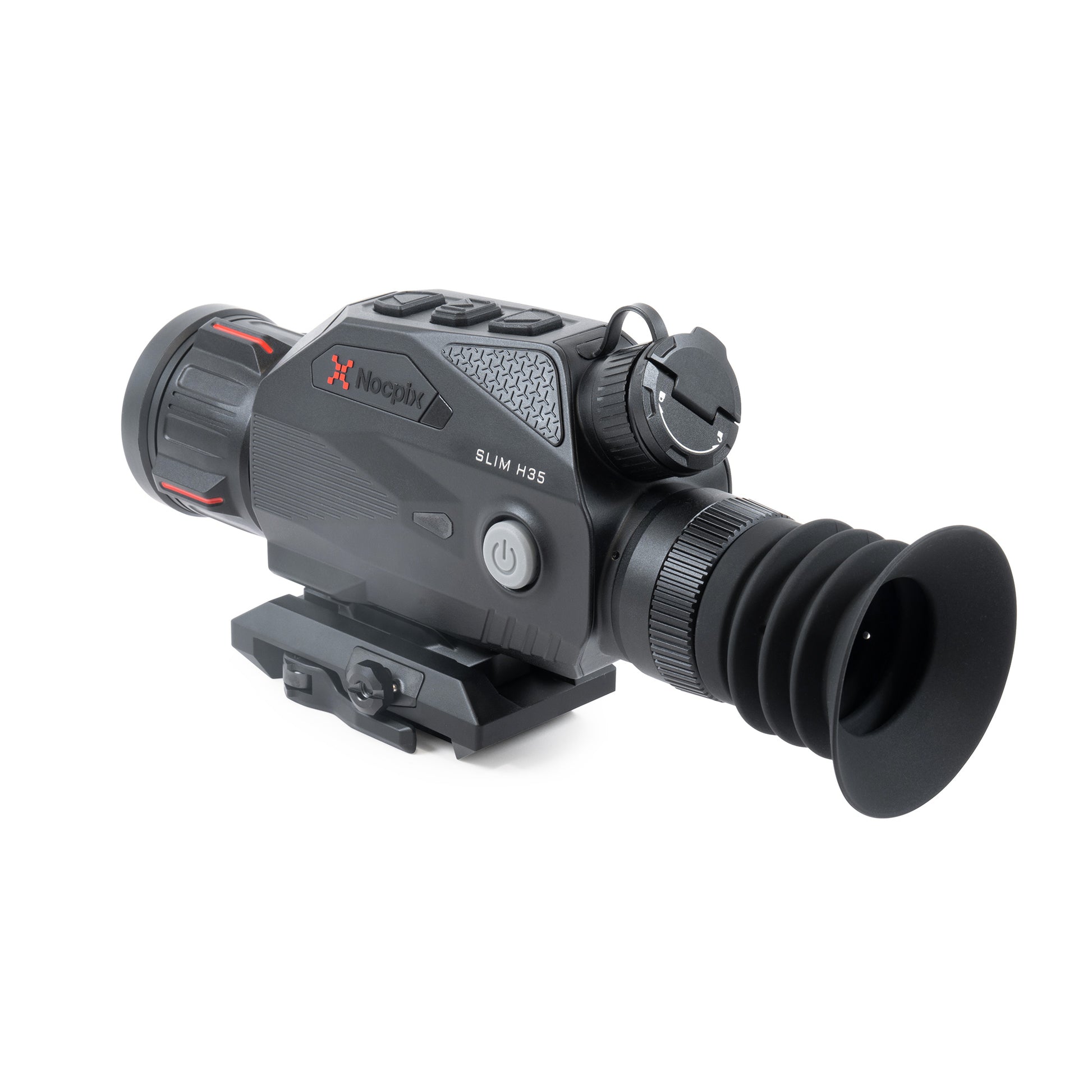

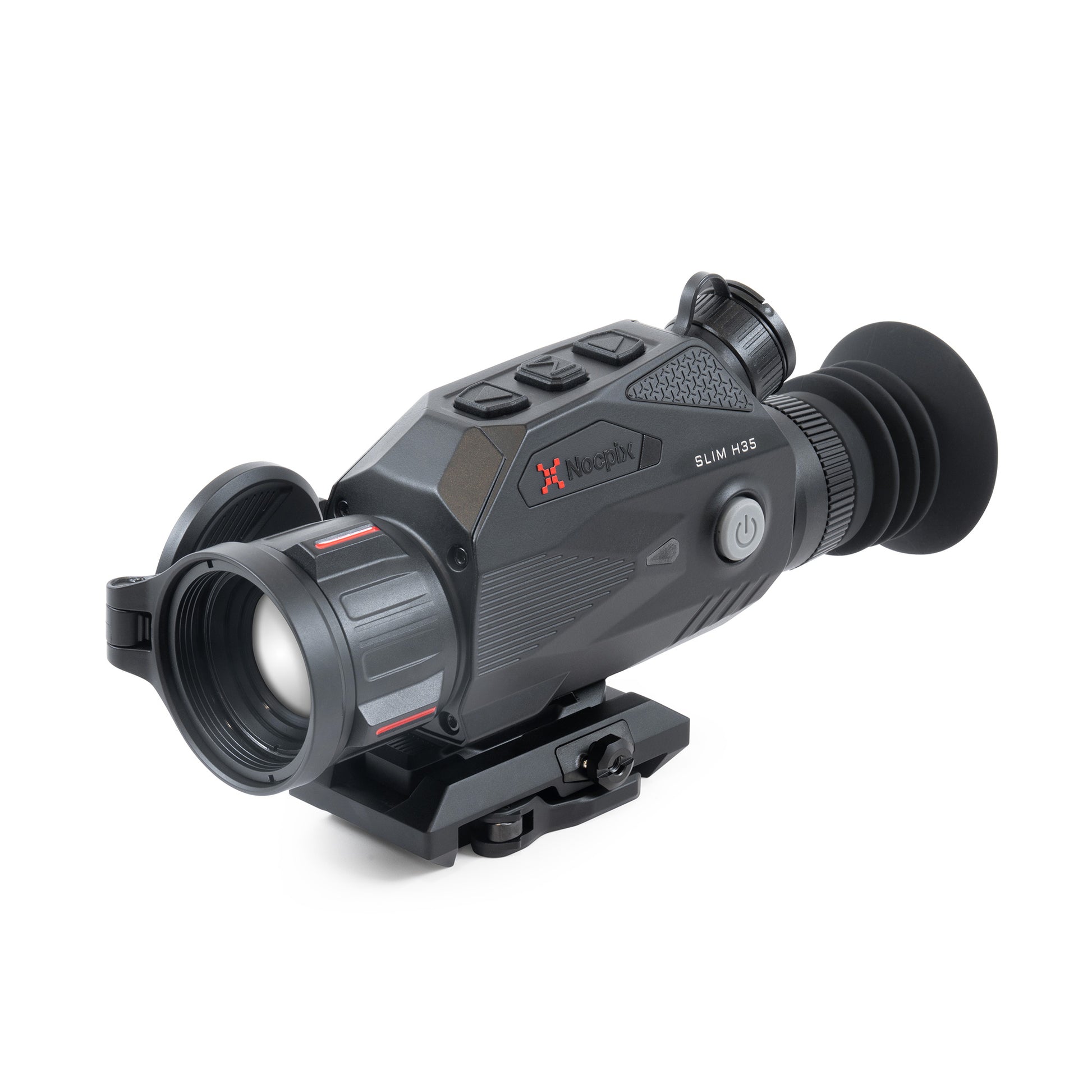

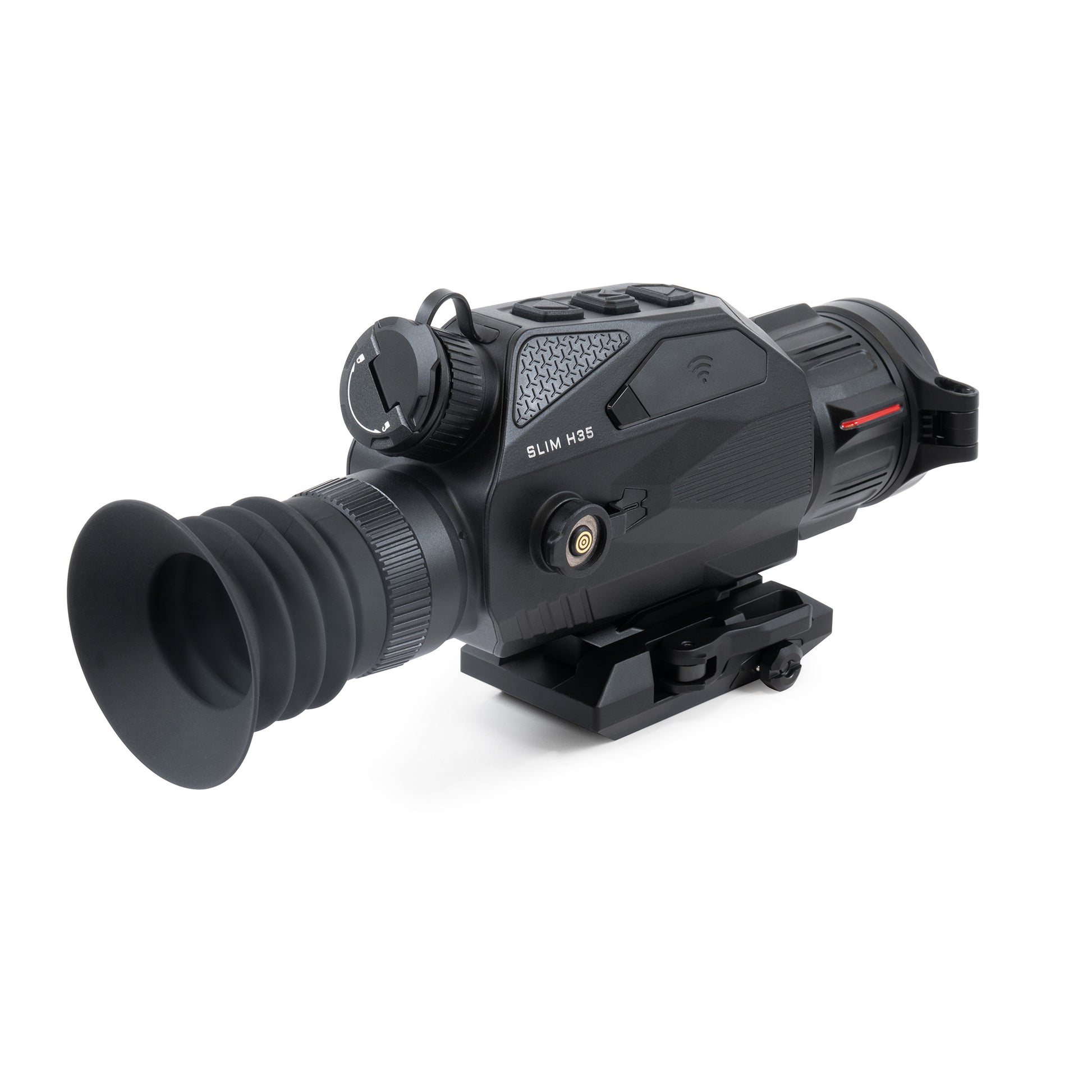

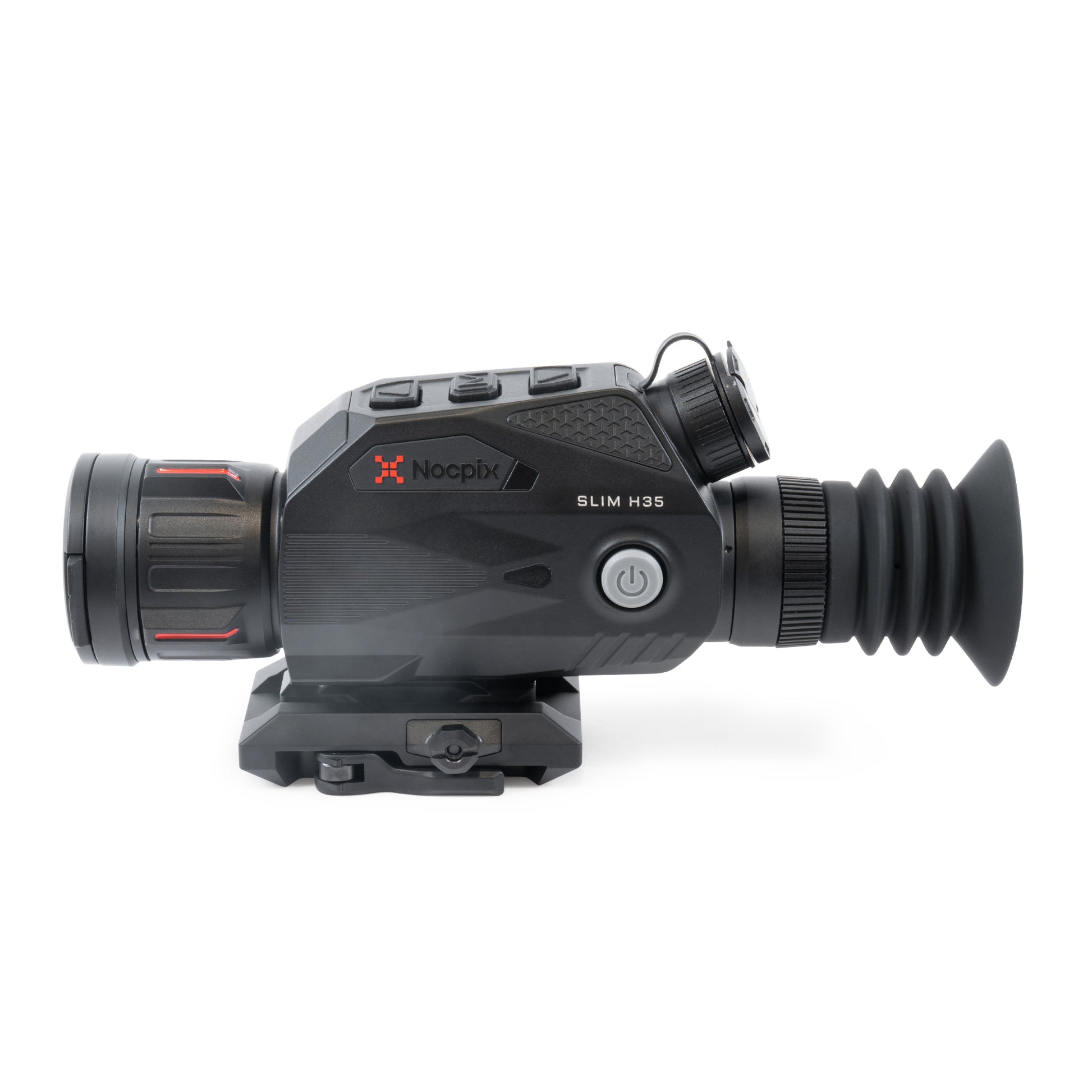

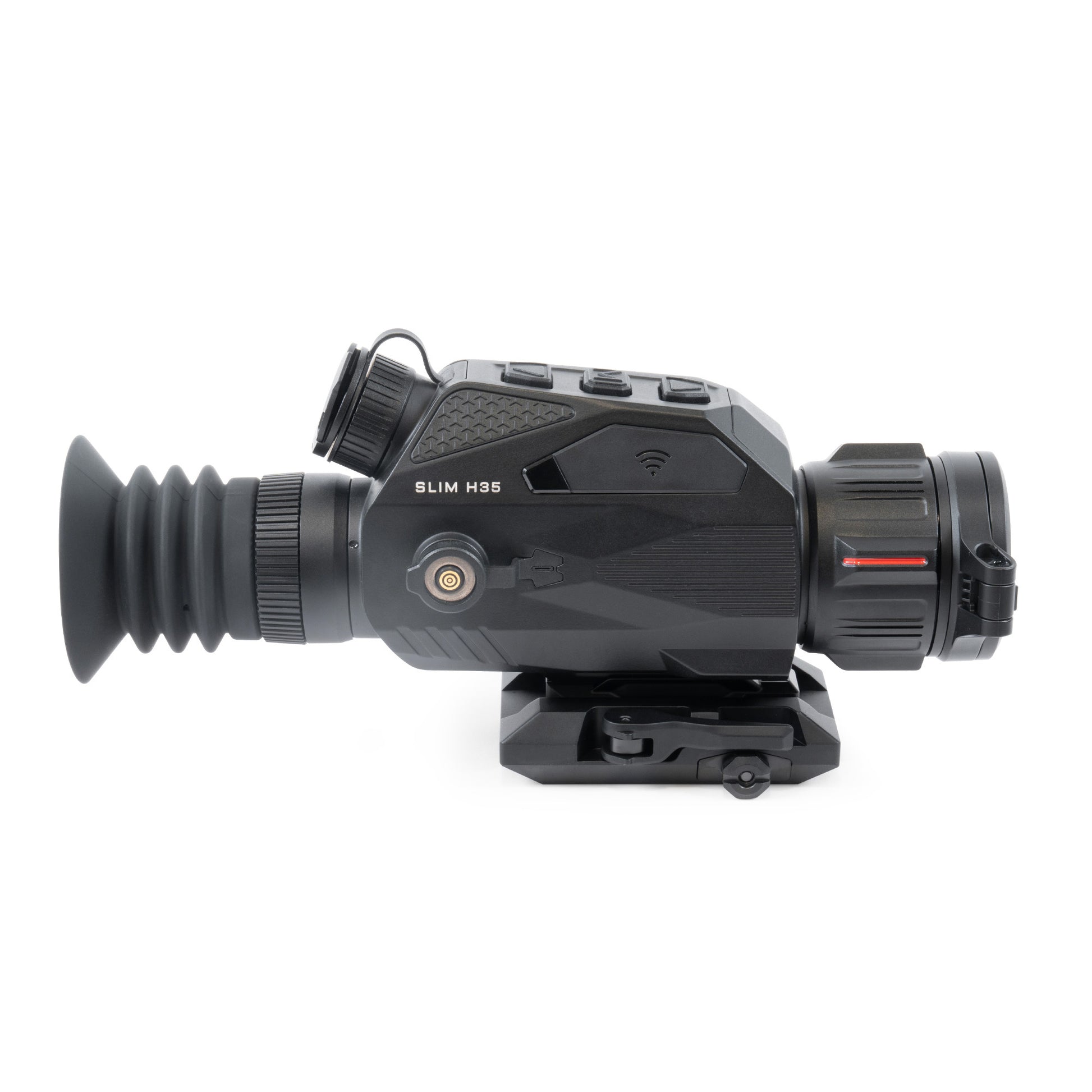

Nocpix Slim H35 640

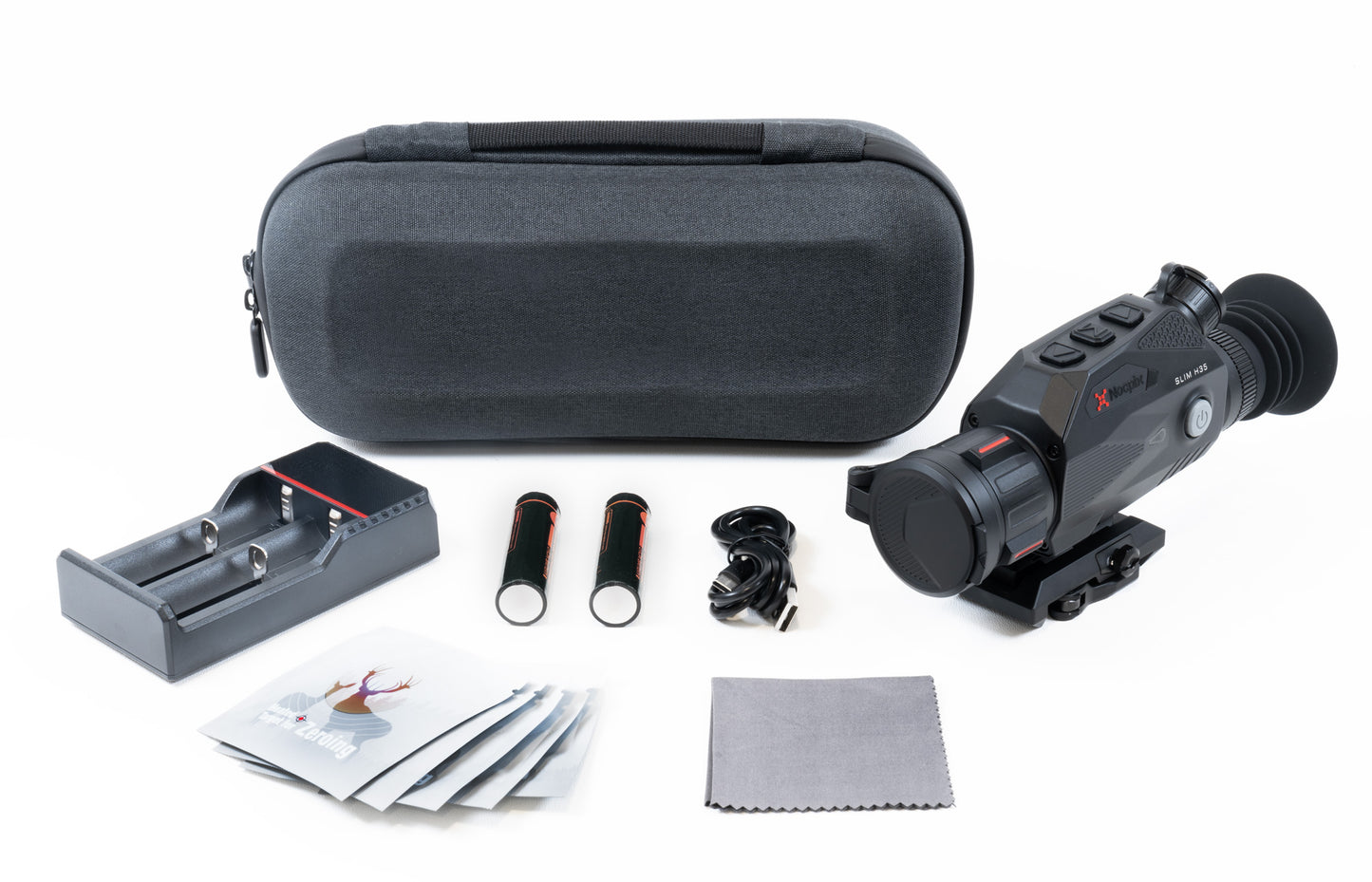

The new SLIM series from Nocpix provides the best value and features in a compact optic. Focused on versatility and ease of use, SLIM models can be used as either a handheld monocular or a weapon sight, including the SLIM H35. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included IRB-2 batteries (flay-top 18650 style cell) are easy to swap–letting you stay out longer with the ability to charge through the optic using a magnetic cable. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing and hunting experience.

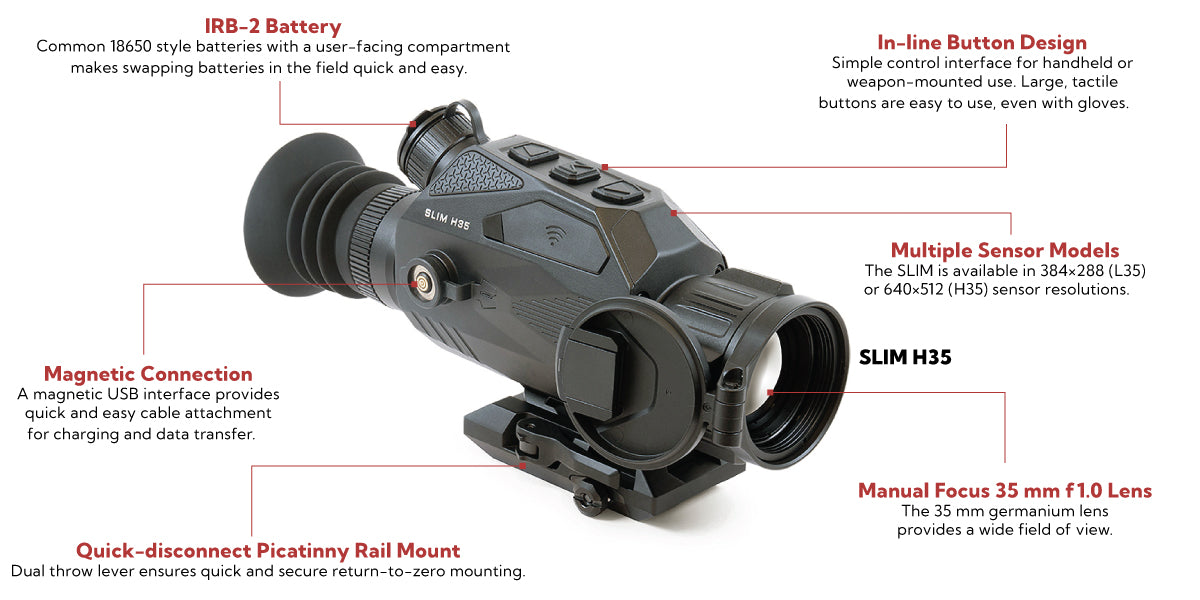

• Ambidextrous one-handed design for easy use as a handheld monocular or weapon sight.
• Recoil-activated video automatically records footage before and after a shot.
• High-contrast 1024×768 AMOLED display provides increased clarity and detail.
• Quick-release dual-throw mount with a magnetic alignment aid provide fast and secure return-to-zero (1-MOA) weapon mounting.
• Uses common 18650 style rechargeable batteries.
• Available in high and standard-resolution models.
• Quick, secure charging via the magnetic charging port.

• Optics

  Objective Focal Length	35mm
  Display Type	AMOLED

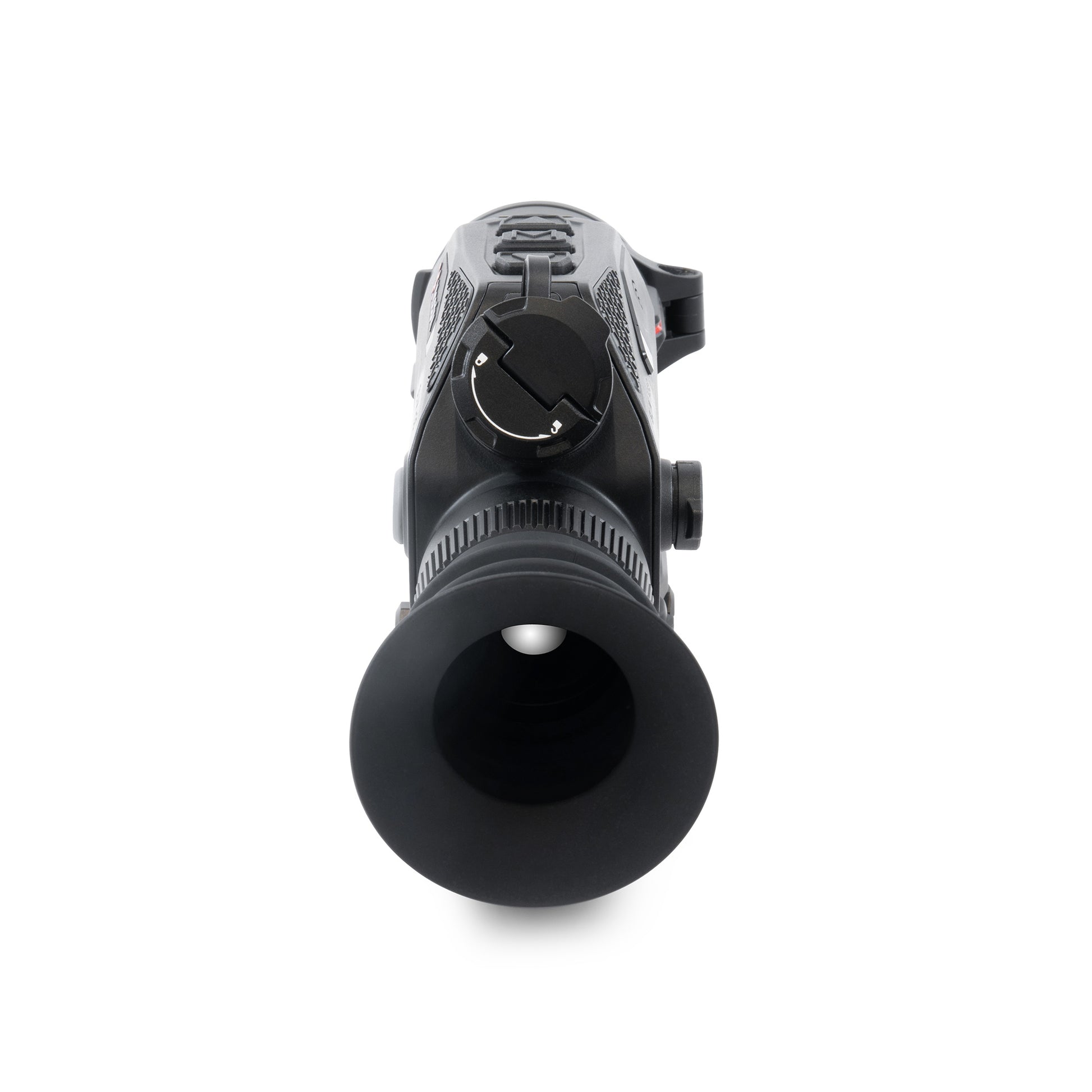

  Eye Relief	48mm
  Digital Magnification	4x
  Diopter Range	-5 to +5
  Vertical Angular Field of View	9.4°
  Horizontal Angular Field of View	12.5°
  Focusing Mechanism	Manual Focus
  Objective F#	1.0
  Objective Diameter	35mm
  Objective Lens Material	Germanium
  Display Resolution	1024×768
  Detection Range	1750 Yards
  Optical Magnification	2X

  Features & Performance

  Warranty	5 Years
  Startup Time	<10 Seconds, Instant from Standby
  Color Palettes	White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
  Picture-in-Picture	Yes
  Storage Capacity	32GB
  Connector Output	Power/Data
  User-Updatable Firmware	Yes
  Mobile App	Yes
  Run Time	4+
  Power Source	USB-C External, 18650 Battery
  One-Shot Zero	Yes
  Stand-by Mode	Yes
  Reticle	8 (1 Dynamic, 6 Static, 1 DIY)
  Connector Type	USB-C
  External Power Source	USB-C
  Country of Manufacture	China
  Wifi	Yes
  Onboard Recording	Yes
  Image Capture	Yes
  Video Output	Yes

  Environmental Specifications

  Operating Temperature Range	-4°F~122°F
  Recoil Rating	1000 g/s² (300 Win./7mm Mag)
  Ingress Protection	IP67

  Physical

  Mounting Interface	QD Picatinny
  Housing Material	Magnesium Alloy
  Weight	18.70
  Height	1.81
  Width	2.99
  Length	8.50

  Sensor Specifications

  Device Technology	Thermal Imaging
  Sensor Type	Nocpix 640
  Sensor Pixel Size	12μm
  Thermal Sensitivity	<18mk
  Non-Uniformity Correction (NUC)	Manual, Automatic, Semi-Automatic
  Sensor Frame Rate	50hz
  Sensor Resolution	640×512
