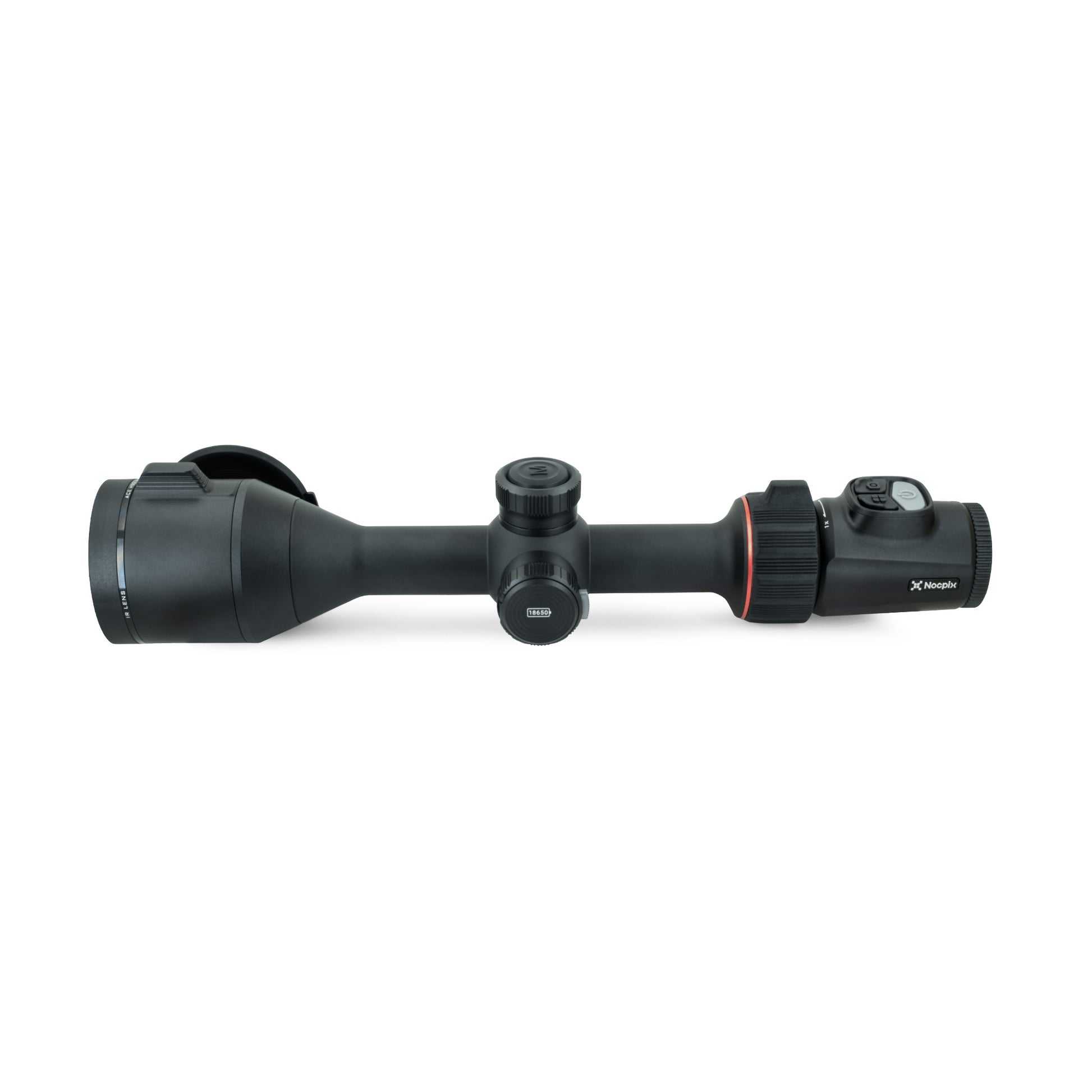

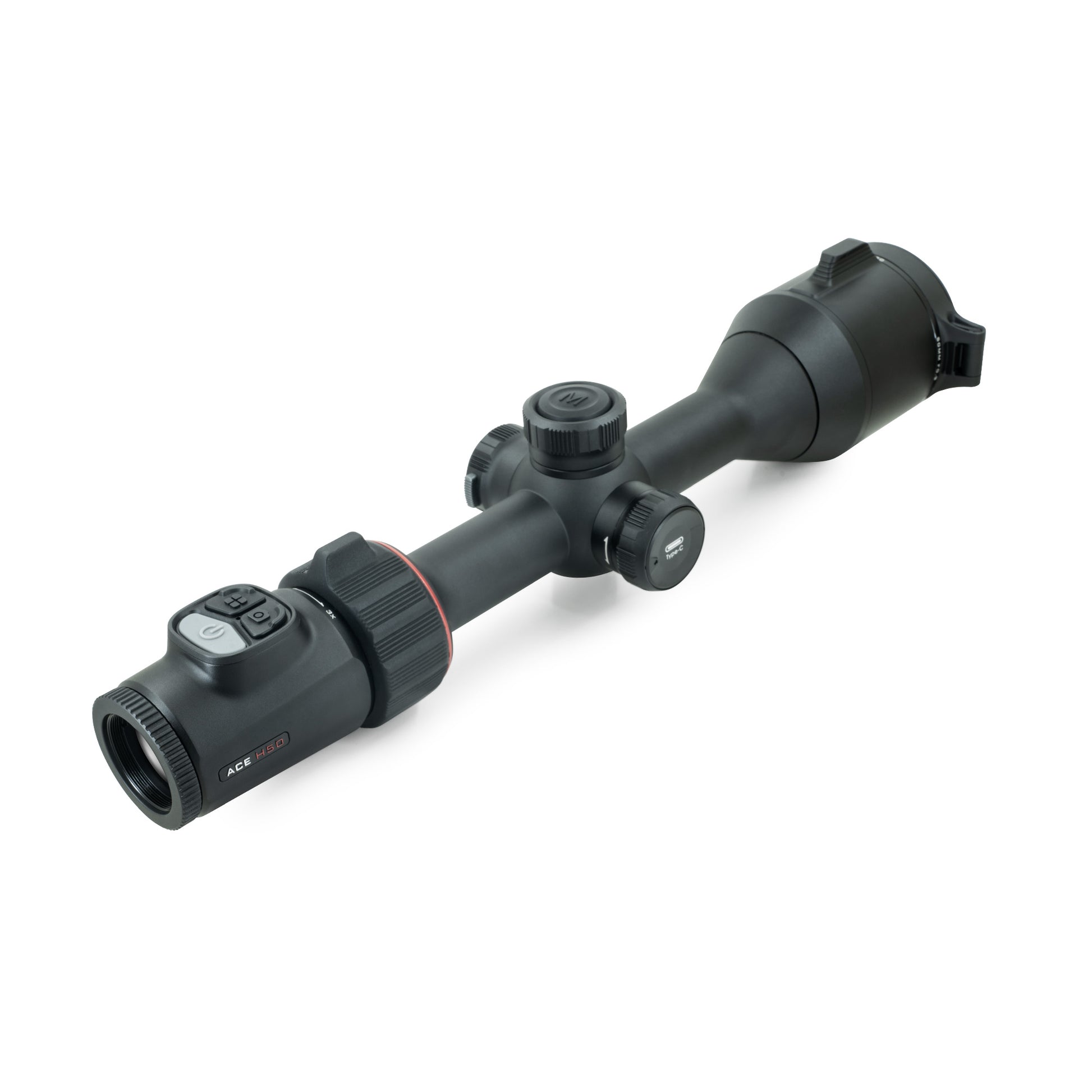

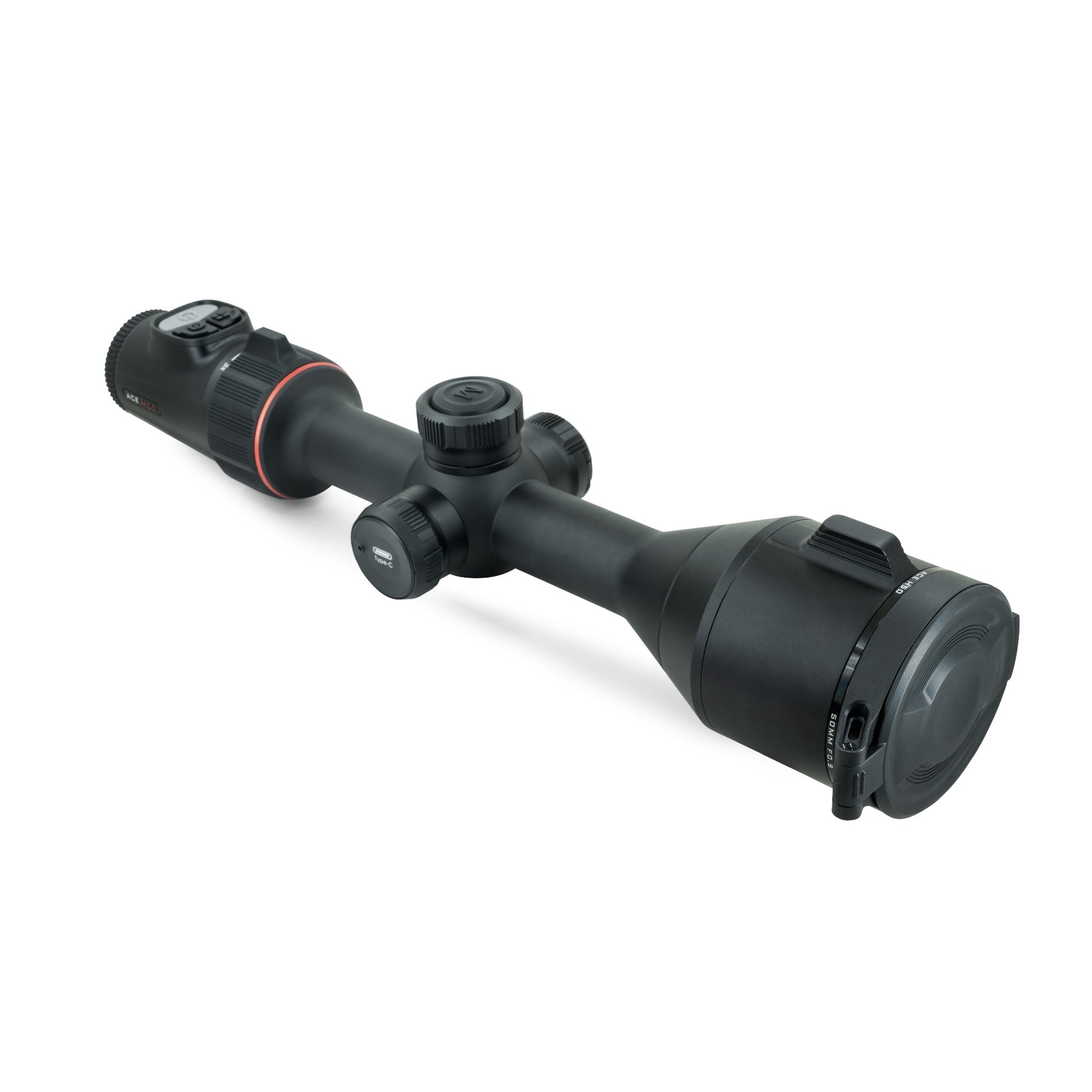

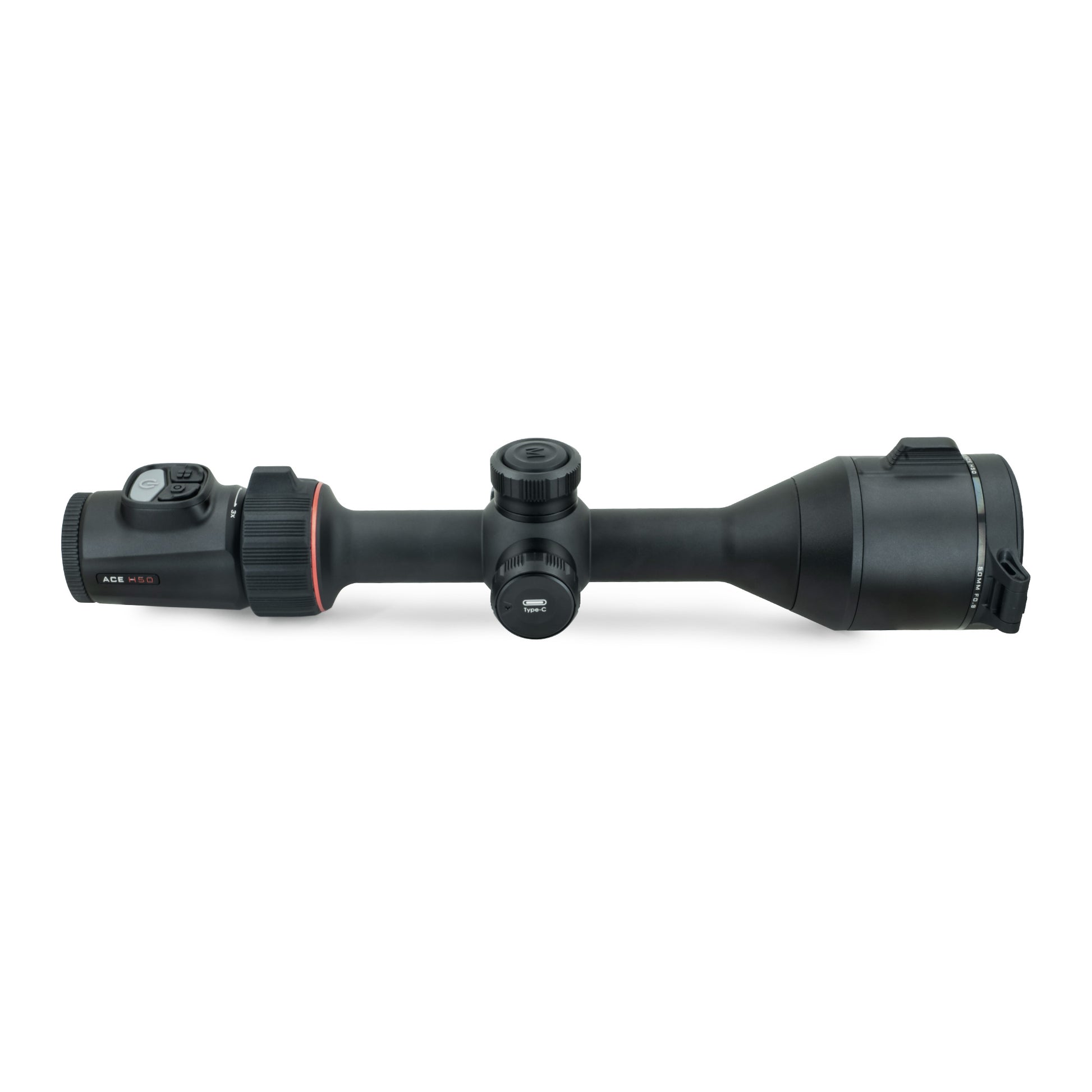

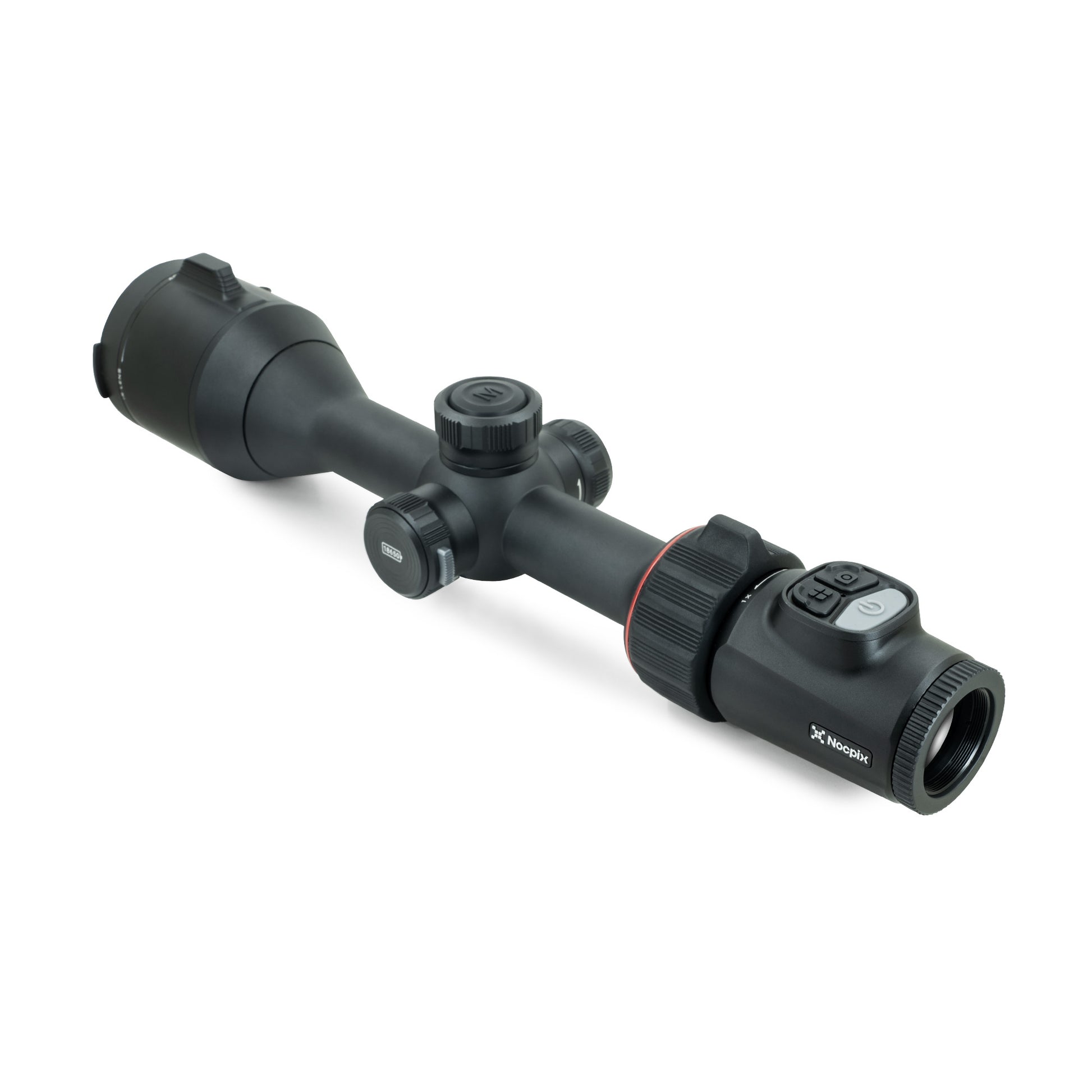

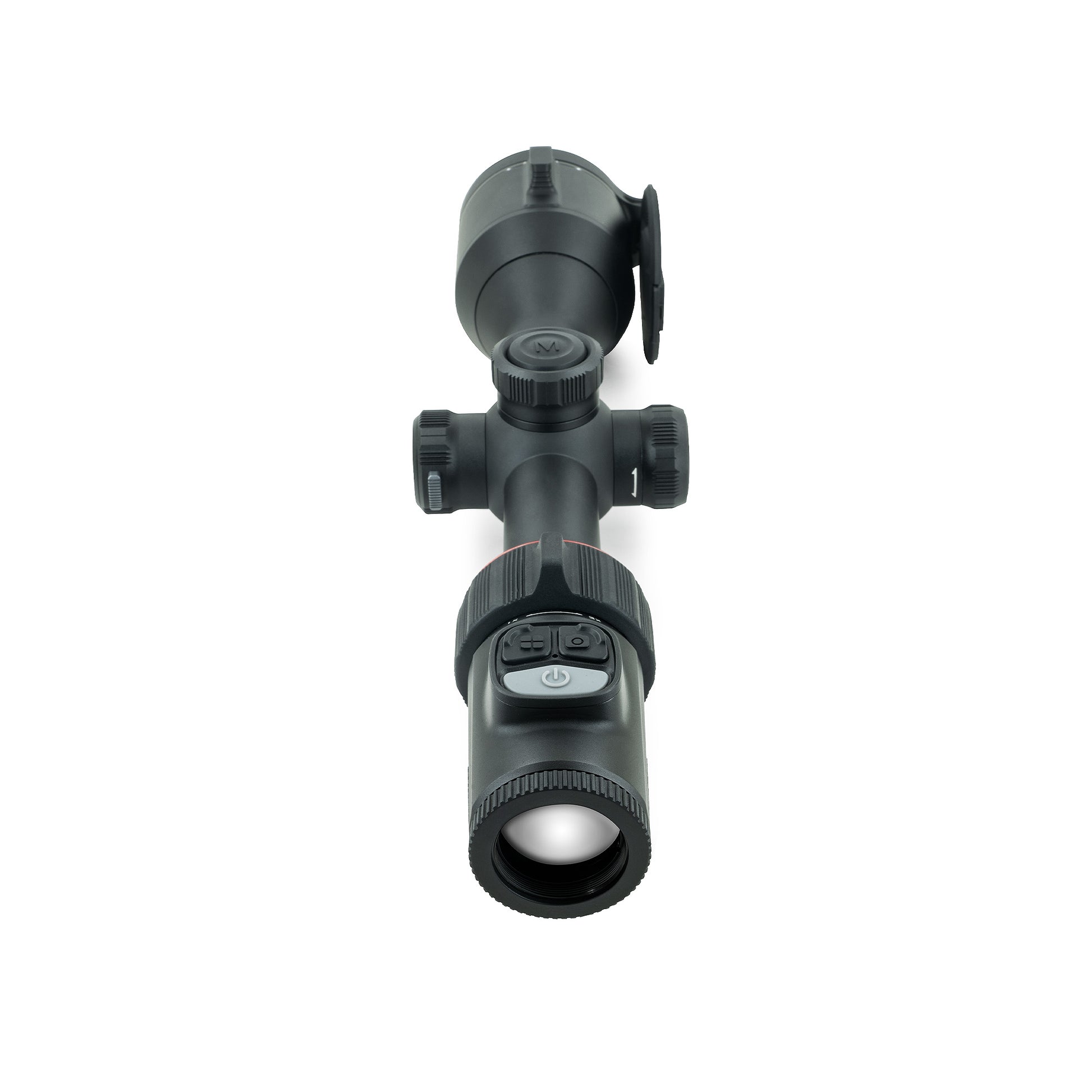

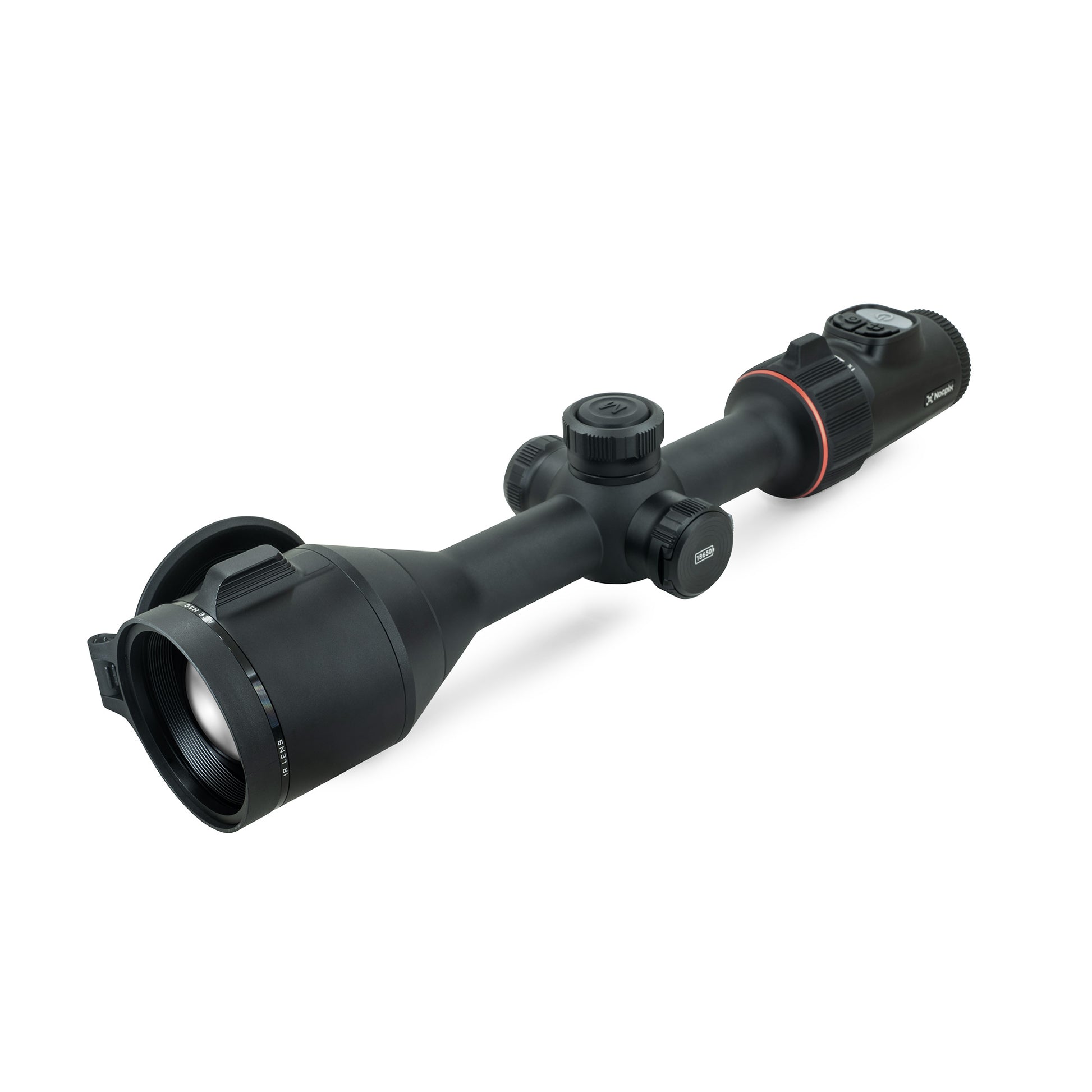

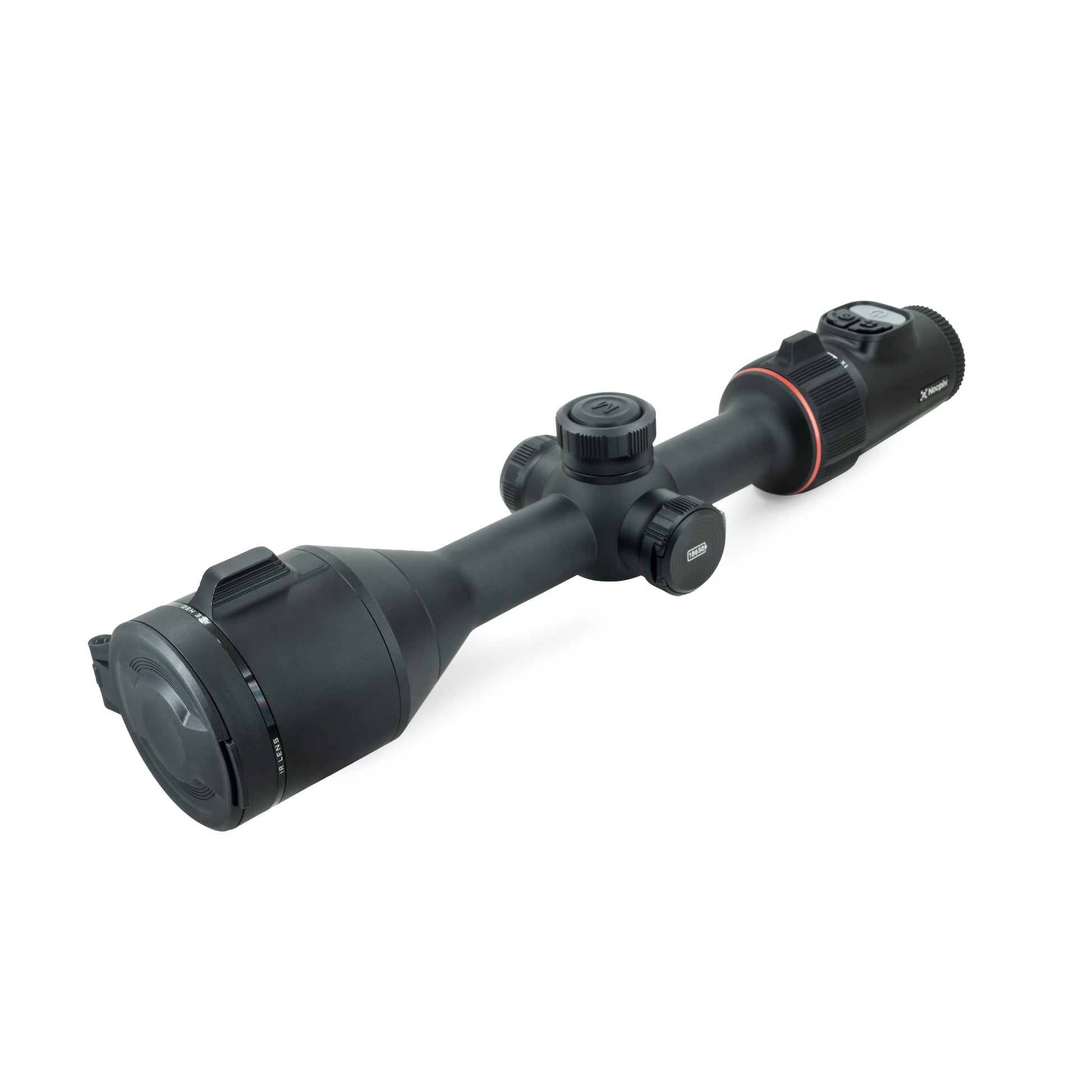

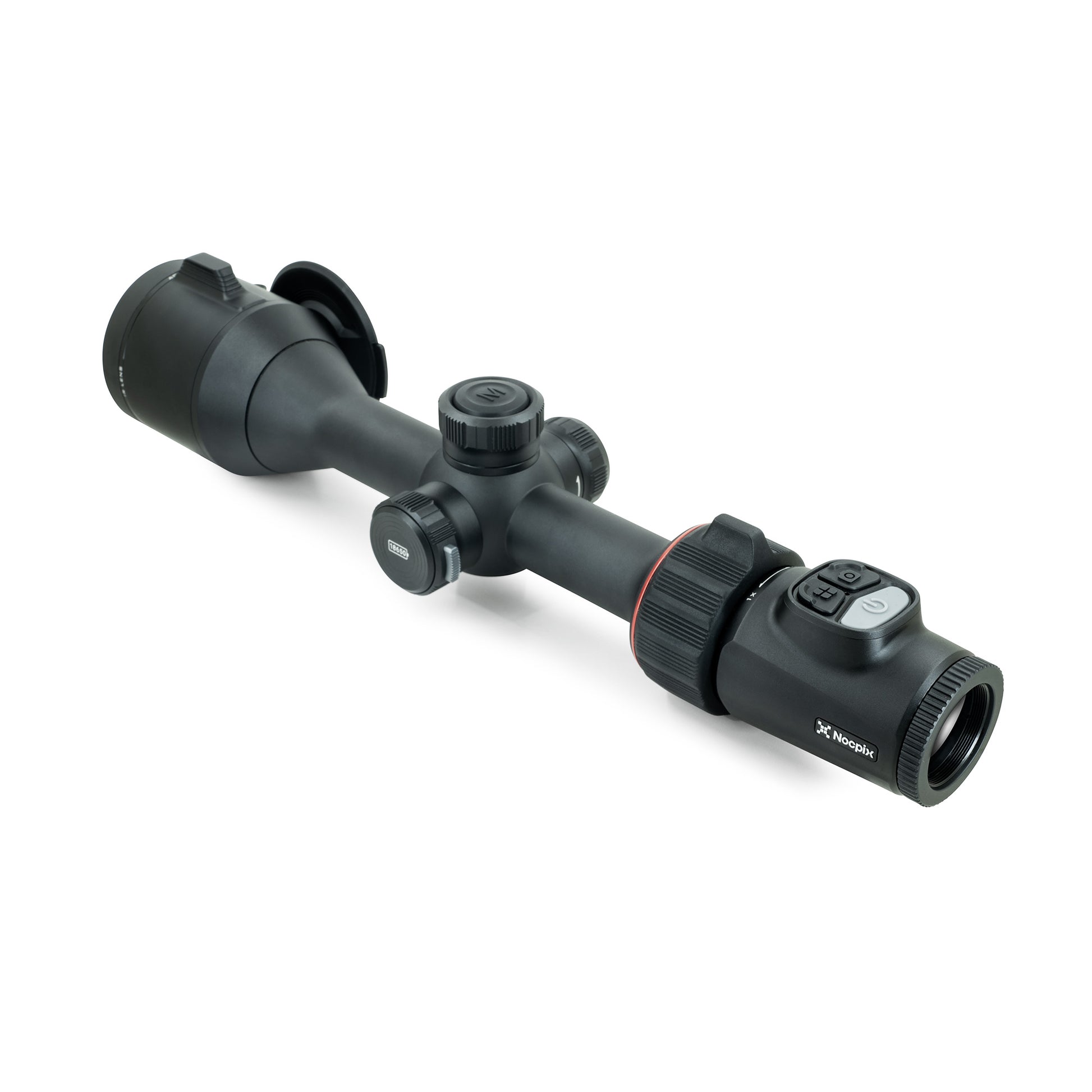

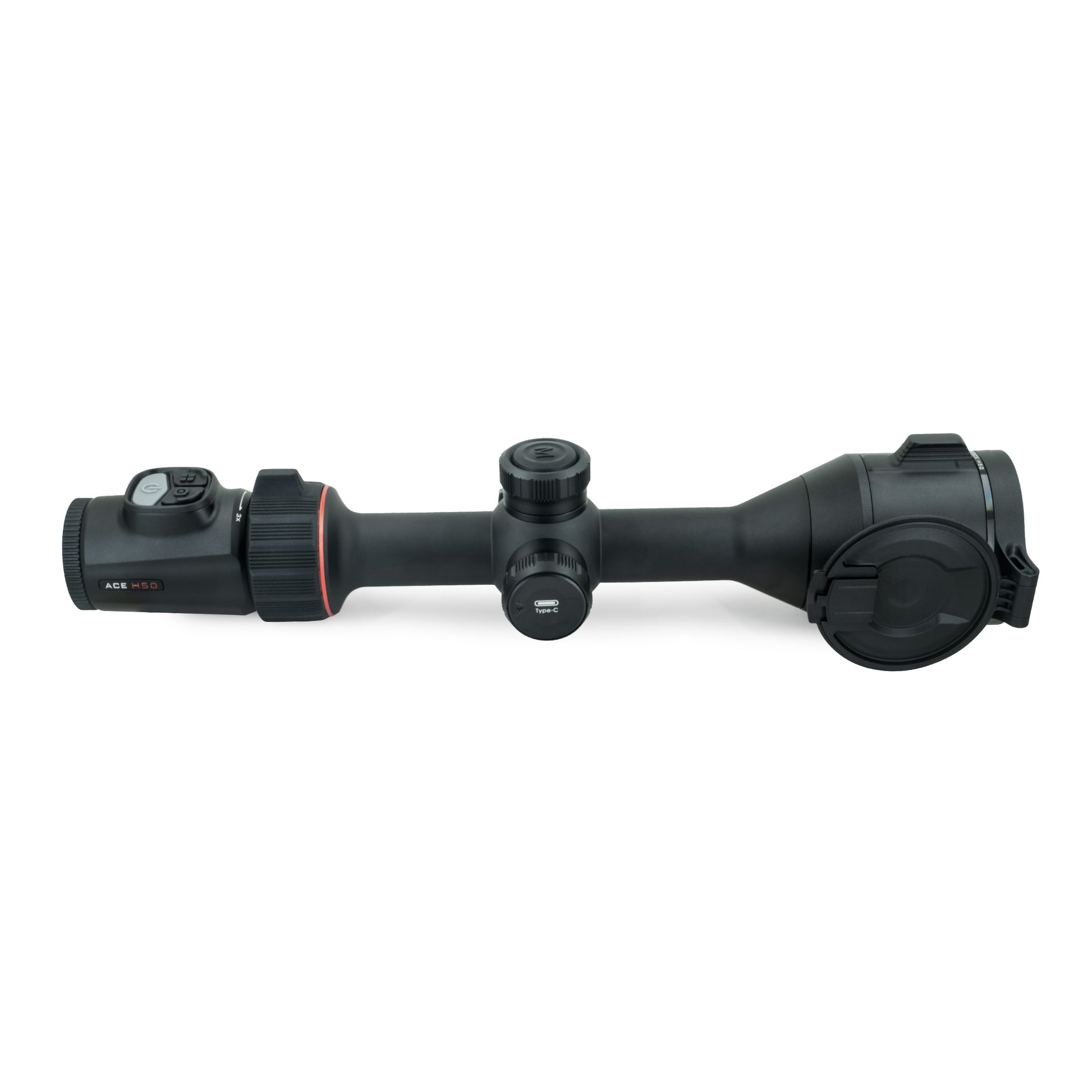

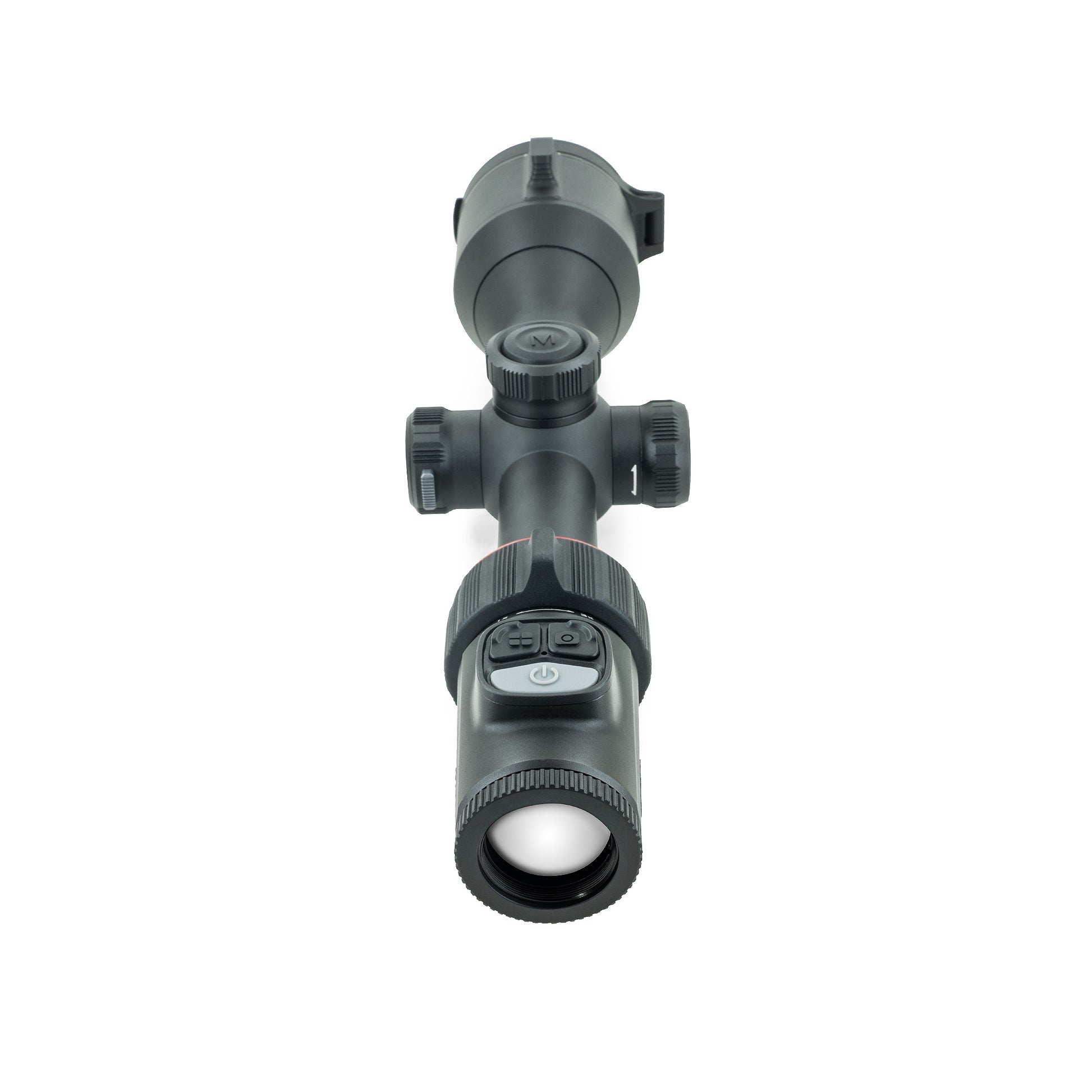

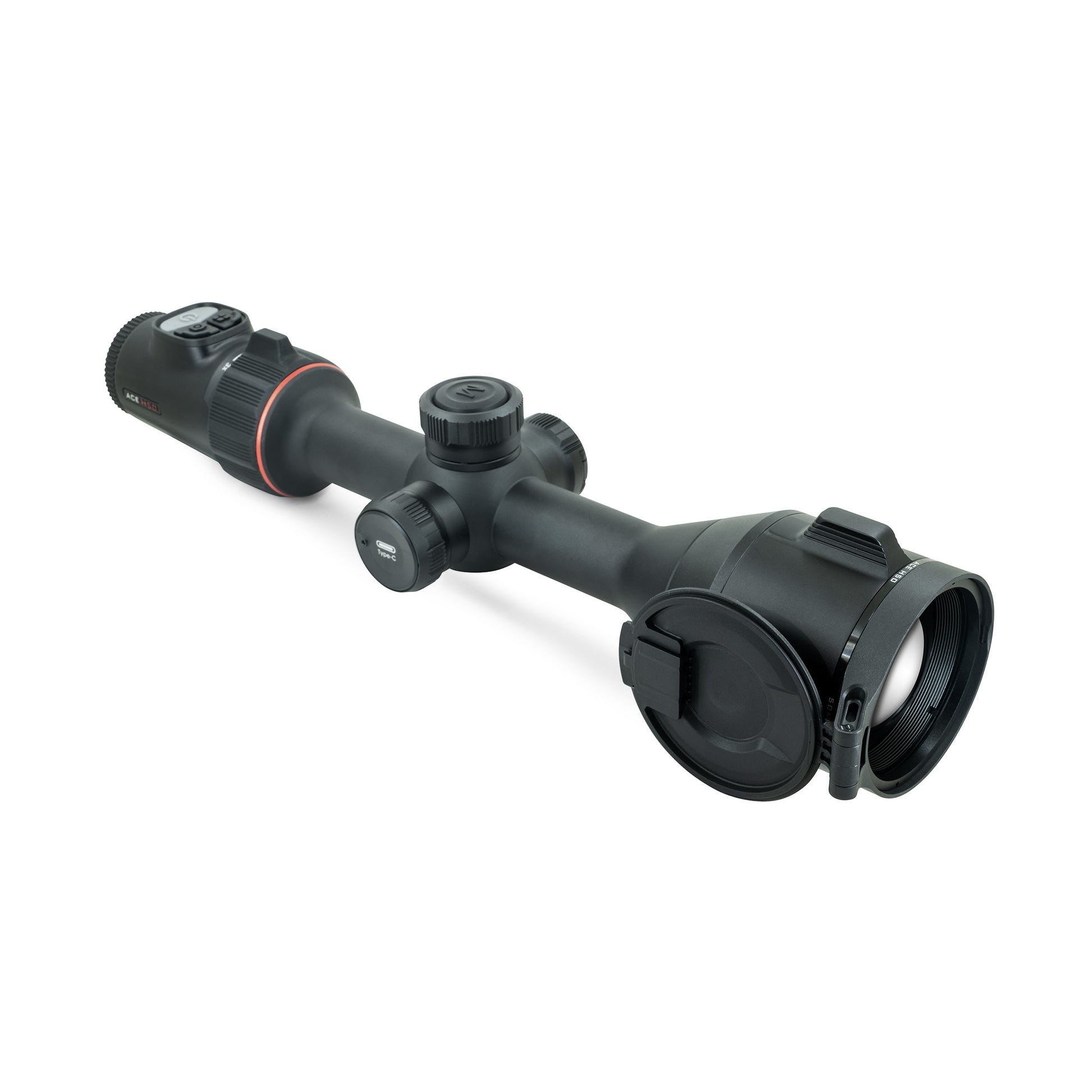

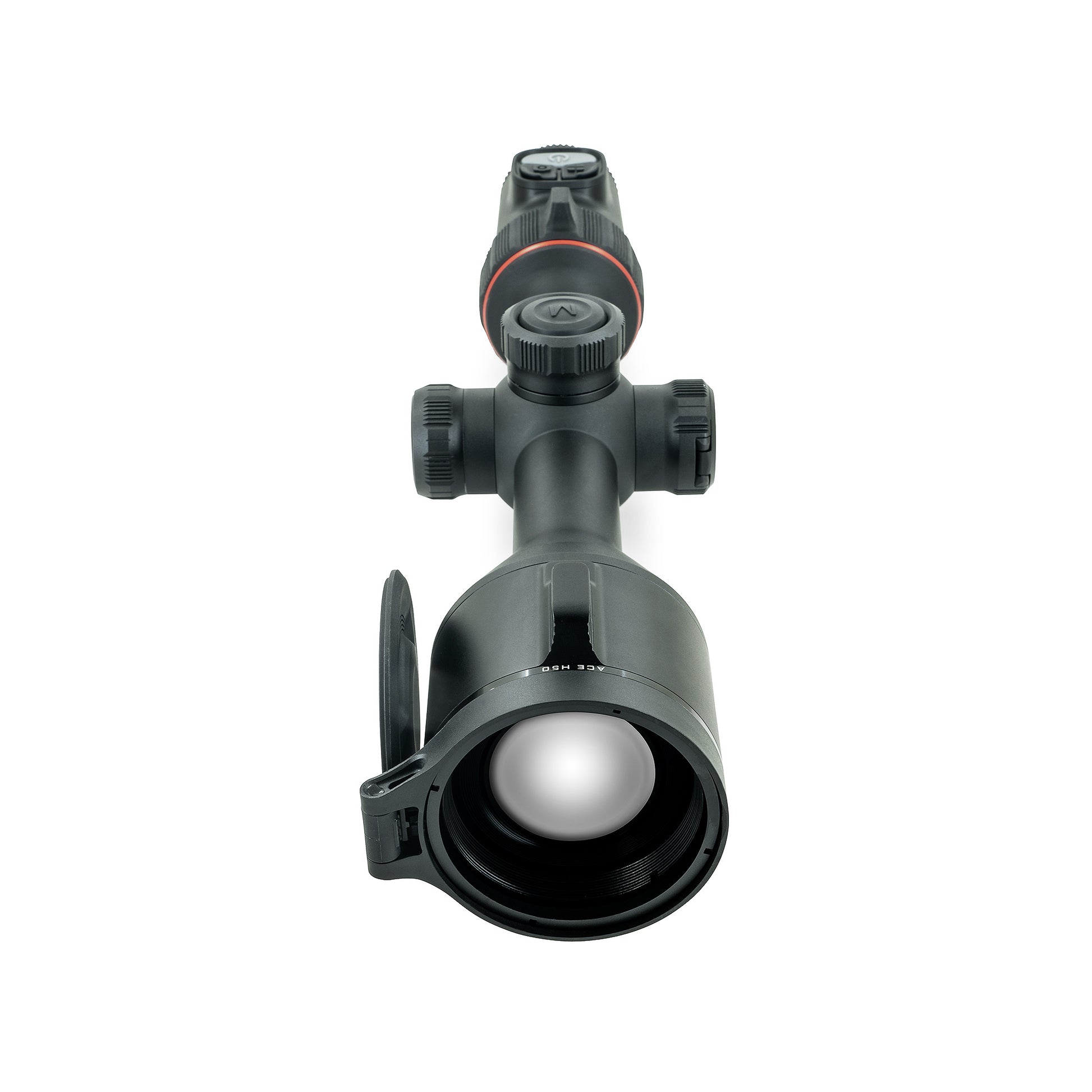

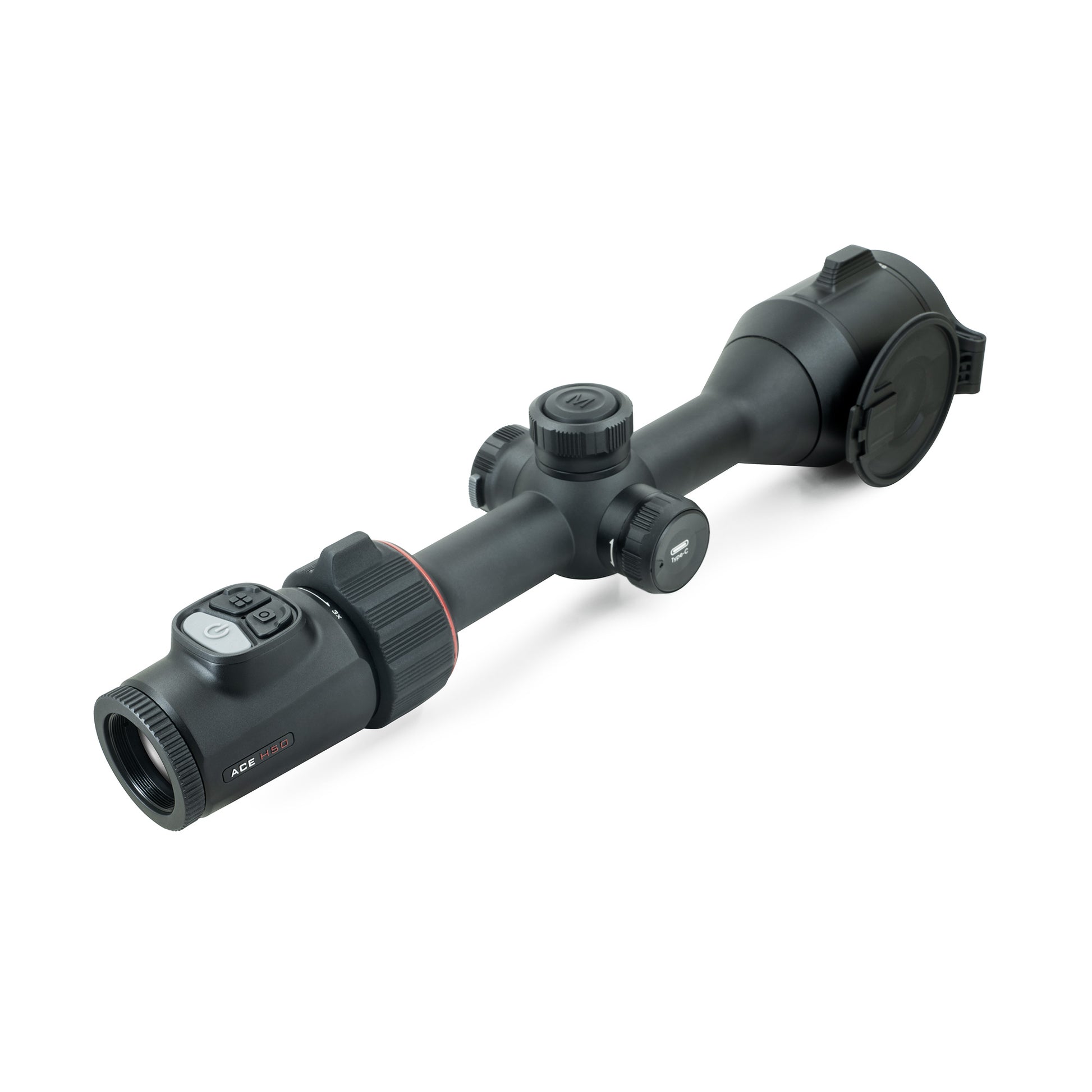

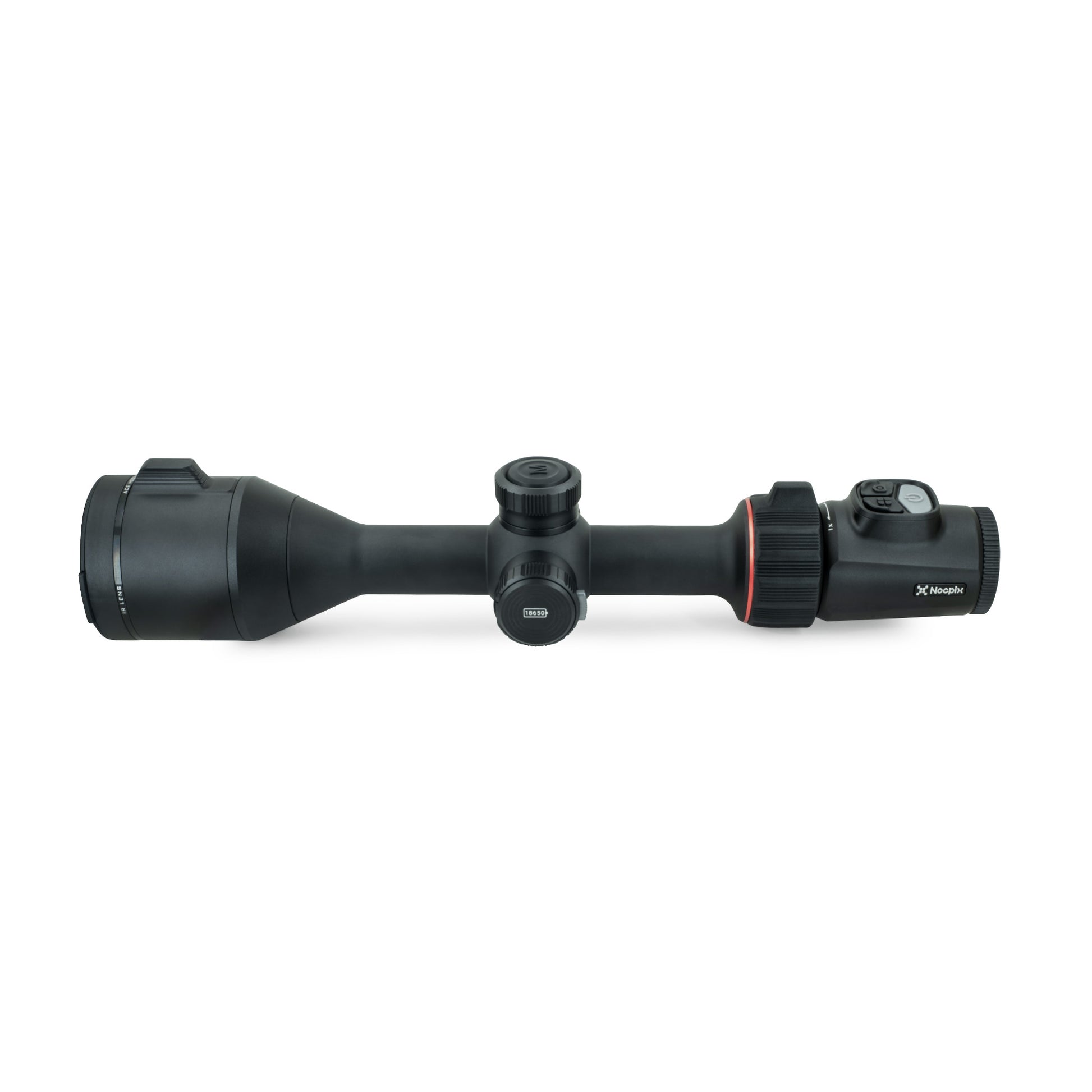

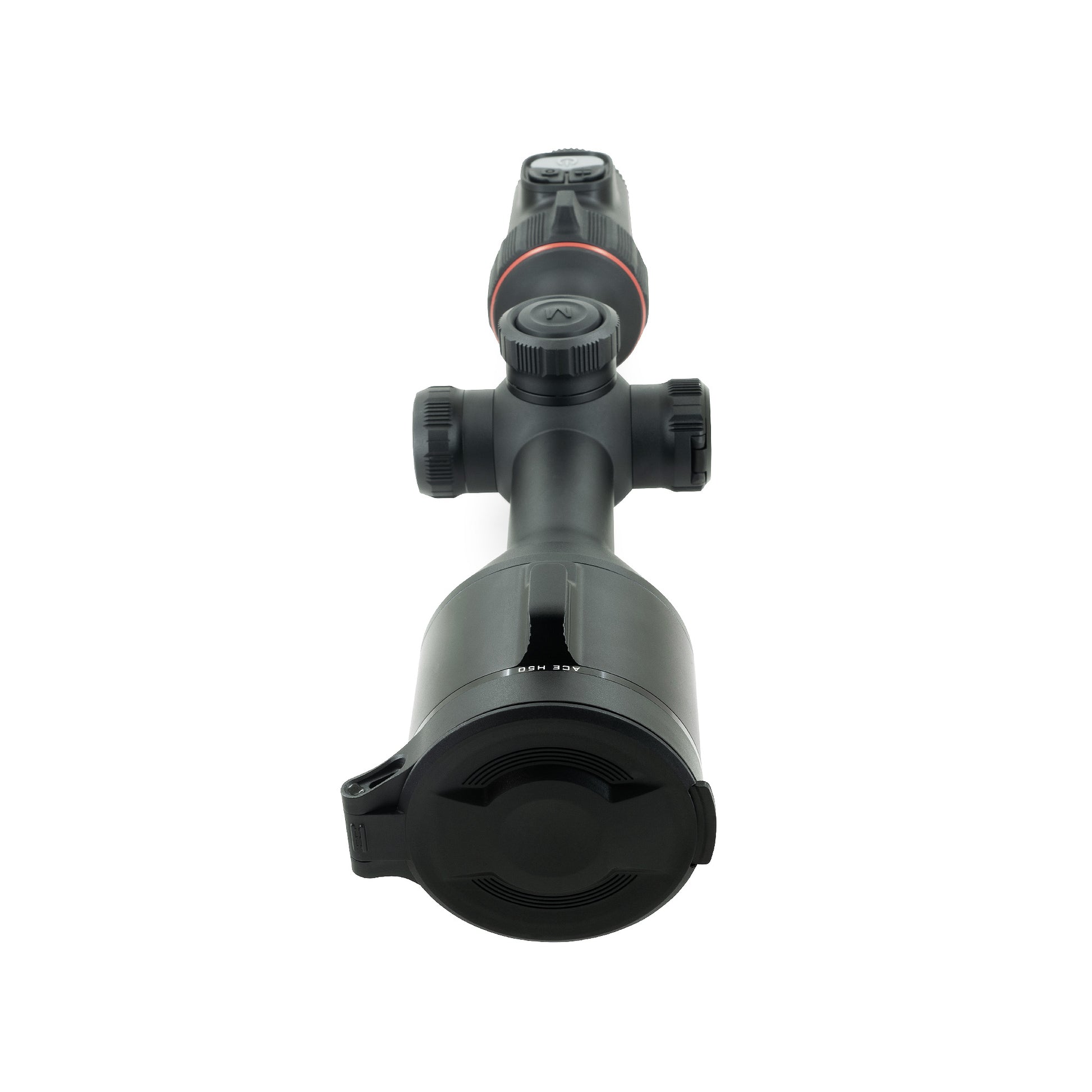

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.
A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
Simplified controls offer improved ergonomics and a better user experience in the field.
Uses common 18650 style rechargeable batteries.
Charge through the unit with a unique lock-out USB-C port design.
Optics
Display Type
AMOLED
Eye Relief
50mm
Objective Focal Length
50mm
Digital Magnification
8X
Diopter Range
-5 to +5
Vertical Angular Field of View
7°
Horizontal Angular Field of View
8.8°
Focusing Mechanism
Manual Focus
Objective F#
0.9
Objective Diameter
50mm
Objective Lens Material
Germanium
Display Resolution
2560×2560
Detection Range
2850 Yards
Optical Magnification
3X
Features & Performance
Warranty
5 Years
Startup Time
<10 Seconds, Instant from Standby
Color Palettes
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
